SH150-180BX

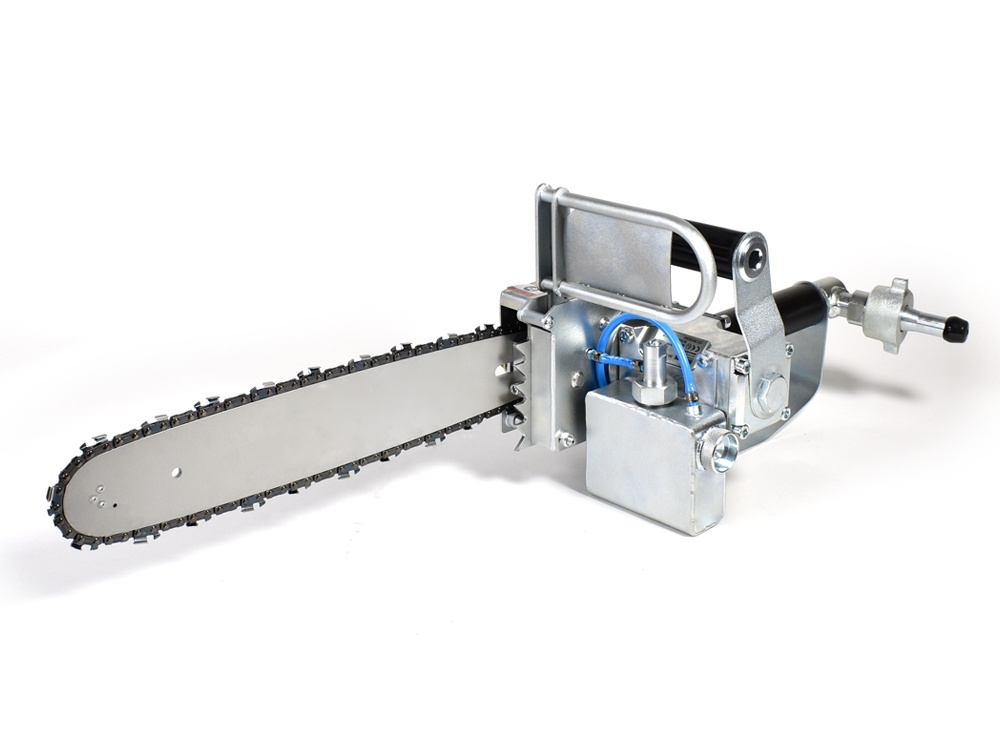

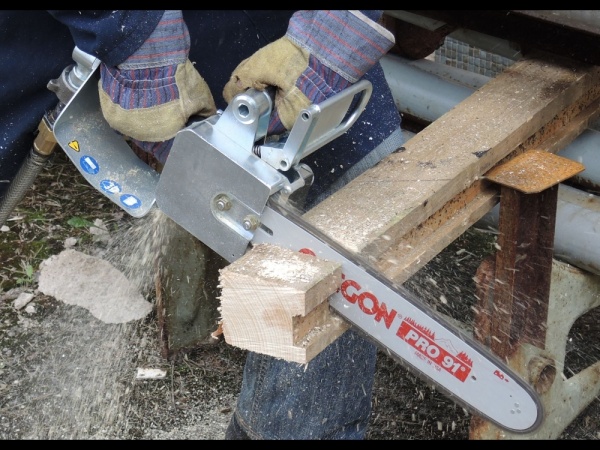

Chain saw - for the cutting of different materials for varying applications in heavy-duty 24/7 industrial operations, such as the machine building- or in the wood-fabricating industry; the saw can also be used in explosion hazardous environments
Chain saw - ATEX-compliant IM2cXIIGcIIBT4 (130°C) X
- Chain saw - for a 24/7 operation in both industrial- and manual operations, such as machine building, the wood-fabricating industry and even for the use in potentially explosive environments
- High power output, high cutting speed
- With integrated hand-safety, safety chainbrake
- Automatic chain lubrication
- Possible motor speed relation by lever
- Simple to operate and maintain
Objednací číslo
6061125A
| Max. power output | 1500 W / 2.01 hp |
|---|---|
| Max. length of chain bar | 350 mm |
| Weight | 7,6 kg / 16.75 lbs |
| Speed (no load) | 18000 min-1 |
| Assortment | Standard assortment |
| Start | safety lever |
| Air consumption (no load) | 2,95 m3/min / 104.17 cfm |
| Air consumption (loaded) | 2,3 m3/min / 81.22 cfm |
| I.D. of air inlet hose | 16 mm / .63 in |
| Air connection | Rd 32 |
| Max. cutting diameter | 340 (one side) / 690 (both sides) mm / 13.38-27.17 in |
| Chain lubrication | automatic |
| Volume, oil container | 0,25 dm3 |
| Chain brake | Automatic chain brake |
| Sound pressure level Lpa podle ČSN EN ISO 11 201 | 102 dB(A) |
| Sound pressure power LwA according ČSN EN ISO 15744 | 117 dB(A) |
| Certified acceleration-value of the vibration being transferred to hand-armsystem ahvd (m/s2), measured at no-load according to Norm EN ISO 20 643 | < 2,5 |
| Operating pressure - EX-area | 4 bar / 57 psi |
| Operating pressure - NON EX-area | 6,3 bar / 90 psi |
Standard Equipment
| "T" wrench 13 mm |
|
830751 |
|---|---|---|
| Allen key 5 mm |
|
800448 |

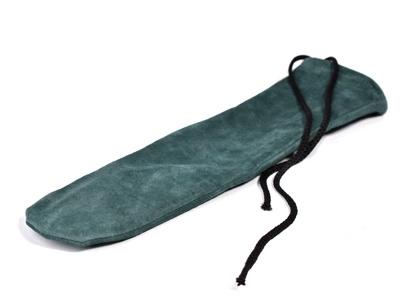

| Protective cover |
|
6075819 |

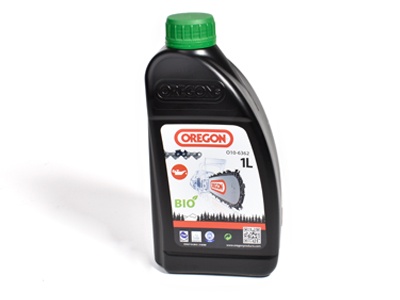

| Oil |
|
830752 |

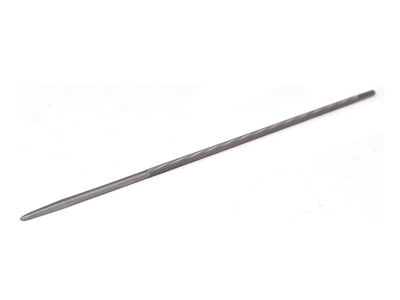

| File ø 4 |
|
6071987 |

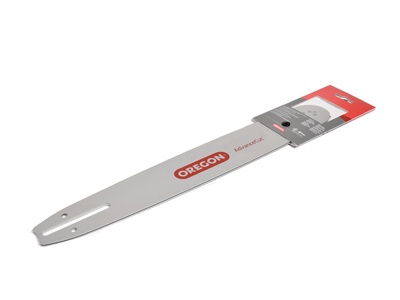

| Chain bar |
|
6072217 |

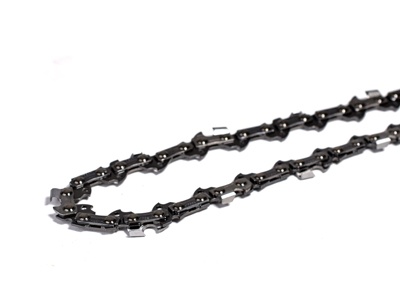

| Chain |
|
6072218 |
| Hose Nozzle |
|
6013825 |
| Screw cap |
|
6014168 |
