PV16B

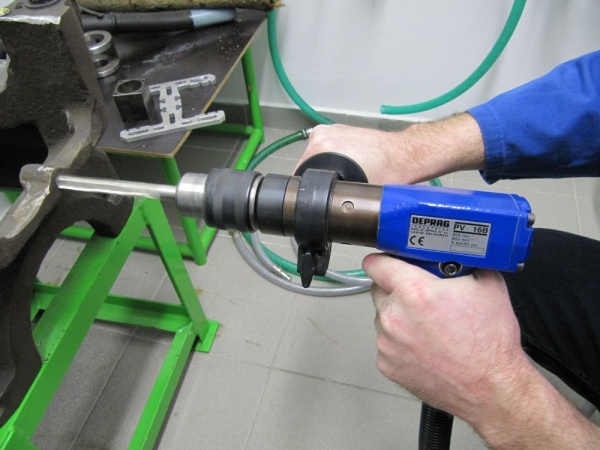

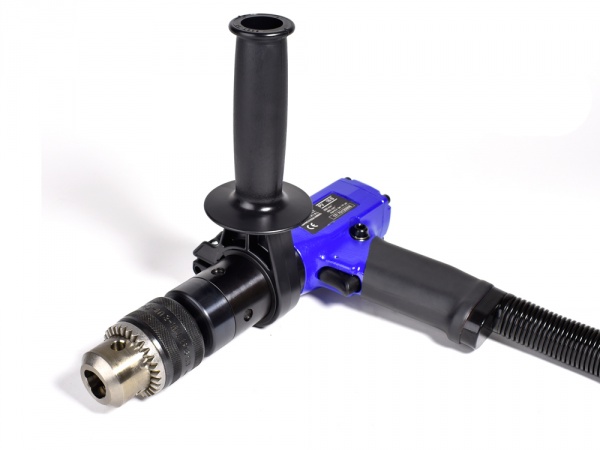

Our robust air drill with pistolgrip with offset handle design for pressure into the drill-axis mainly used for horizontal applications.
For the optimum drilling of different materials - for the operation in the aviation- and automotive industry, as well as the machine building industry.
Ergonomic design of this drill make your job easier, safer and more efficient.
Max. power output First gear / Second gear | 450 / 500 W / .60/.67 hp |
---|---|
Speed (no load) First gear / Second gear | 600 / 850 min-1 |
Weight | 3,15 kg / 6.94 lbs |
Drive | vane motor |
Assortment | Standard assortment |
Start | trigger |
Rotation | right |
Air consumption (no load) first gear / second gear | 0,45 / 0,9 m3/min / 15.89 / 31.78 cfm |
I.D. of air inlet hose | 10 mm / .39 in |
Length of supply/exhaust hose | 2/1,6 m / 6.6 / 5.2 ft |
Chuck range | 3-16 mm |
Drilling into steel to | 16 mm / .63 in |
Drilling into alu to | 23 mm / .91 in |
Air connection | Nipple |
Operating pressure | 6,3 bar / 90 psi |
