PPP35AX

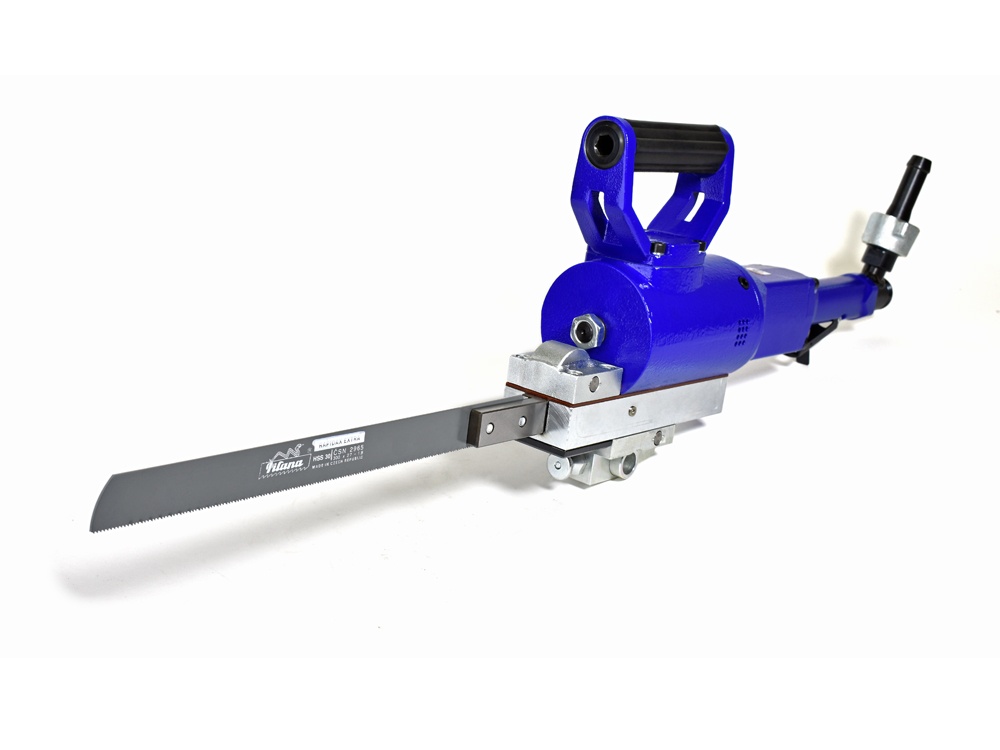

Jig saw - for hand-quided cutting of different materials, expecially metals and plastics e.g. in the machine building or in the wood-fabricating industry
- Jig saw - for cutting of metal components or plastic components

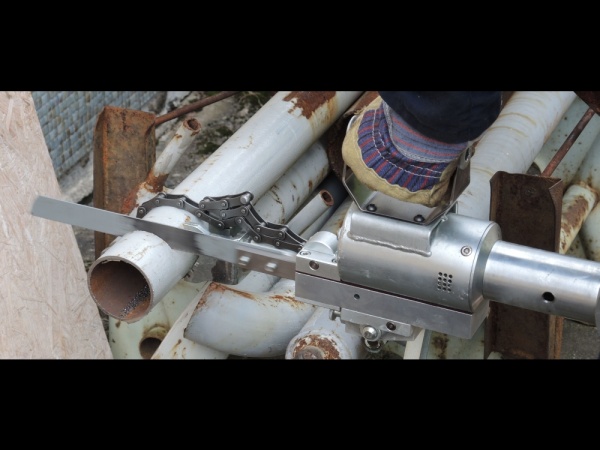

- For the cutting of supports, pipes, cables
- The saw can be equipped with an integrated clamping device which allows deeper cutting - up to 300 mm (11.81 in)
- Integrated speed regulator assures perfect and constant cutting conditions
Objednací číslo
830503A
| Max. power output | 1500 W / 2.01 hp |
|---|---|
| Max. length of saw blade | 350 mm / 13.78 in |
| Weight | 9 kg / 19.84 lbs |
| Stroke speed (no load) | 380 min-1 |
| Assortment | Additional Assortment |
| Start | safety lever |
| Air consumption (no load) | 0,6 m3/min / 21.19 cfm |
| Air consumption (loaded) | 1,2 m3/min / 42.37 cfm |
| I.D. of air inlet hose | 19 mm / .75 in |
| Stroke of saw blade | 68 mm / 2.68 in |
| Max. dimensions of cutting material for middle length of saw blade 350 mm | 300x27x1,5 mm / 11.81x1.06x.06 in |
| Air connection | Rd 32 |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Spanner 13 mm |
|
800404 |
|---|---|---|
| Allen key 5 mm |
|
800448 |
| Saw blade 300x27x1,6 mm |
|
830749 |
| Hose Nozzle |
|
6013768 |
| Screw cap |
|
6014168 |
Optional Accessories

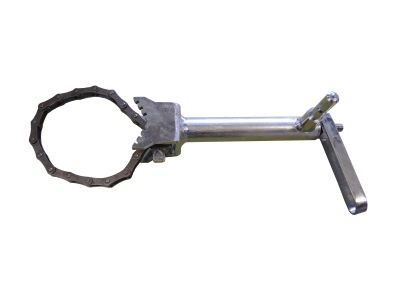

| Chucking device |
|
830754 |
|---|
