PLP180A-40X

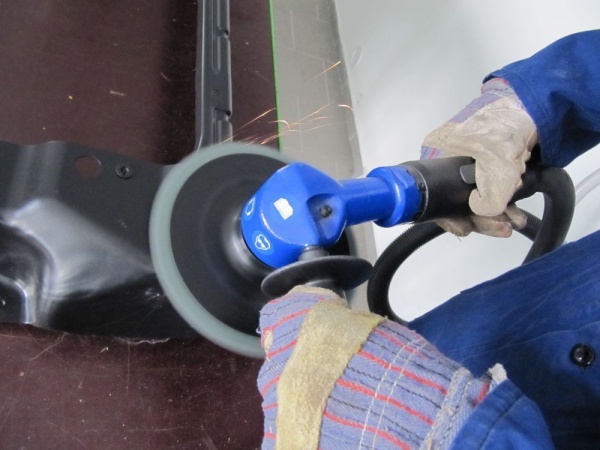

Our air polisher is designed for the polishing of casted parts, welding seams and other materials using vulcan fiber disks, or for the polishing of car bodies after welding in the automotive industry, for the best-possible polishing results even on hard-to-reach areas.
With extended spindle
With integrated speed regulator.
Objednací číslo
6060663A
| Max. power output | 700 W / .94 hp |
|---|---|
| Speed (no load) | 4000 min-1 |
| Weight | 2,4 kg / 5.29 lbs |
| Drive | vane motor |
| Assortment | Standard assortment |
| Start | safety lever |
| Rotation | right |
| Air consumption (no load) | 0,45 m3/min / 15.89 cfm |
| Air consumption (loaded) | 0,85 m3/min / 30.01 cfm |
| Max. radial speed | 40 m/s / 131.23 ft/s |
| I.D. of air inlet hose | 10 mm / .39 in |
| Length of supply/exhaust hose | 2/1 m / 6.6/3.3 ft |
| Max. Ø of rubber backing pad | 180 mm / 7.09 in |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Pin wrench |
|
828832 |
|---|---|---|
| Washer ø 180 mm |
|
830699 |
| Nipple |
|
315071 |
Optional Accessories
| Fiber disk for rubber backing pad - ø 178 mm , grain 16 |
|
805818 |
|---|---|---|
| Fiber disk for rubber backing pad - ø 178 mm , grain 24 |
|
805819 |
| Fiber disk for rubber backing pad - ø 178 mm , grain 30 |
|
805820 |
| Fiber disk for rubber backing pad - ø 178 mm , grain 40 |
|
805821 |
| Fiber disk for rubber backing pad - ø 178 mm , grain 50 |
|
805822 |
| Fiber disk for rubber backing pad - ø 178 mm , grain 60 |
|
805823 |
| Fiber disk for rubber backing pad - ø 178 mm , grain 80 |
|
805824 |
| Fiber disk for rubber backing pad - ø 178 mm , grain 100 |
|
805825 |
| Fiber disk for rubber backing pad - ø 178 mm , grain 120 |
|
805826 |
