PA025-036SX

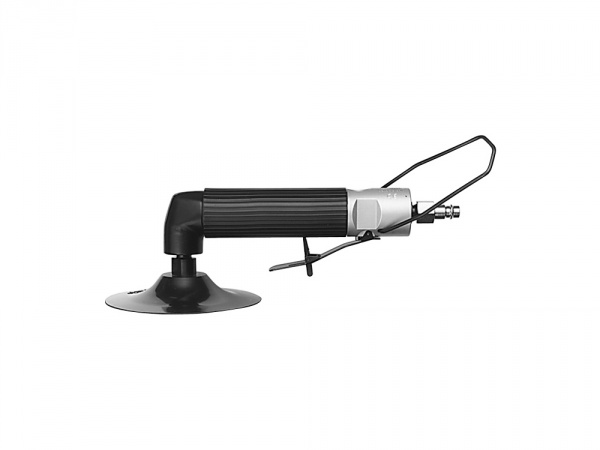

Our air polisher with angle head 90° is designed for the polishing of casted parts, welding seams and other materials using vulcan fiber disks.
With gear for optimal working-speeds and the best polishing operations.
Your advantages: For industrial applications, efficient and economical, ergonomic, highly durable, simple operation.
Objednací číslo
3149172B
| Max. power output | 250 W / .34 hp |
|---|---|
| Speed (no load) | 3600 min-1 |
| Weight | 0,9 kg / 1.98 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Short design |
| Rotation | right |
| Air consumption (no load) | 0,35 m3/min / 12.36 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Max. Ø of rubber backing pad | 120 mm / 4.72 in |
| Air connection | thread 1/4" male |
| Spindle thread | M14 |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
804251 |
|---|---|---|
| Nipple |
|
323214 |
| Spanner 14 mm |
|
800410 |
Optional Accessories
| Pressure hose (2m), exhaust hose (0,75 m) |
|
313179A |
|---|---|---|
| Rubber backing pad (with flange nut, ø 120 mm |
|
6075042 |
| Pin wrench |
|
805080 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 16 |
|
805800 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 24 |
|
805799 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 30 |
|
805802 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 40 |
|
805803 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 50 |
|
805804 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 60 |
|
805805 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 80 |
|
805806 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 100 |
|
805807 |
| Fiber disk for rubber backing pad - ø 127 mm , grain 120 |
|
805808 |
