P1361Z-C00
Our air pliers for cutting - with trigger and integrated lever-lock to avoid unintentional start, for the cutting of copper, aluminum, beryllium, silver, thermo/duroplast and steel. For the industrial use for example in series production, in the automotive industry, in machine building industry, in the appliance industry as well as in maintenance and assembly departments.
Your advantages: High cutting power, simple operation, highly durable
Our pliers is especially for the use in mass production, where a person can suffer sustained, long-lasting and monotonous stress in performing tasks such as assembling clips or cutting wires with manual tools. Such working conditions may result in RSI (repetitive strain injury). By replacing manual tools with our pneumatic plier the workers will be protected against negative effects of mass production workplace.
Our special pliers for cutting as well as for other operations (e.g. wire-end flattening; 90°angle forming or wire ends of electronic components).
Pliers inserts for this cutting plier → Optional Accessories.| Cutting force | 3400 N |
|---|---|
| Weight (without plier insert) | 0,48 kg / 1.06 lbs |

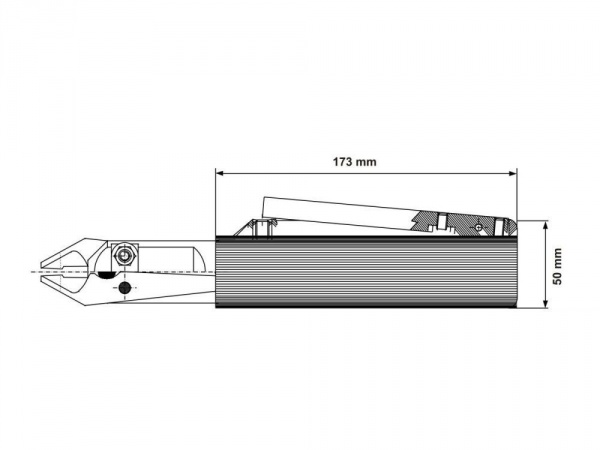

| Diameter | 50 mm / 1.97 in |
| Length (without plier insert) | 173 mm / 6.81 in |
| Assortment | Additional Assortment |
| Start | safety lever |
| Air consumption / Cutting | 0,22 l |
| I.D. of air inlet hose | 6 mm / .24 in |
| Pliers insert, mounted | no (plier insert I36…) |
| Air connection | thread 1/4" female |
| Operating pressure | 6,3 bar / 90 psi |
| Quick release coupling |
|
804250 |
|---|---|---|
| Nipple |
|
804270 |
| Pliers insert I36C00 (inserts opening 14,5 mm, cutting capacity Ø 12 mm) |
|
807681 |
|---|---|---|
| Pliers insert I36C00H2 (inserts opening 14,5 mm, cutting capacity Ø 12 mm) |
|
6950071 |
| Pliers insert I36C00HK2 (inserts opening 14,5 mm, cutting capacity Ø 12 mm) |
|
807389 |
| Pliers insert I36C25 (inserts opening 14,5 mm, cutting capacity Ø 12 mm) |
|
6950073 |
| Pliers insert I36C25H2 (inserts opening 14,5 mm, cutting capacity Ø 12 mm) |
|
6950072 |
| Pliers insert I36C25HK2 (inserts opening 14,5 mm, cutting capacity Ø 12 mm) |
|
807528 |
