P0384X-S00-I90R10

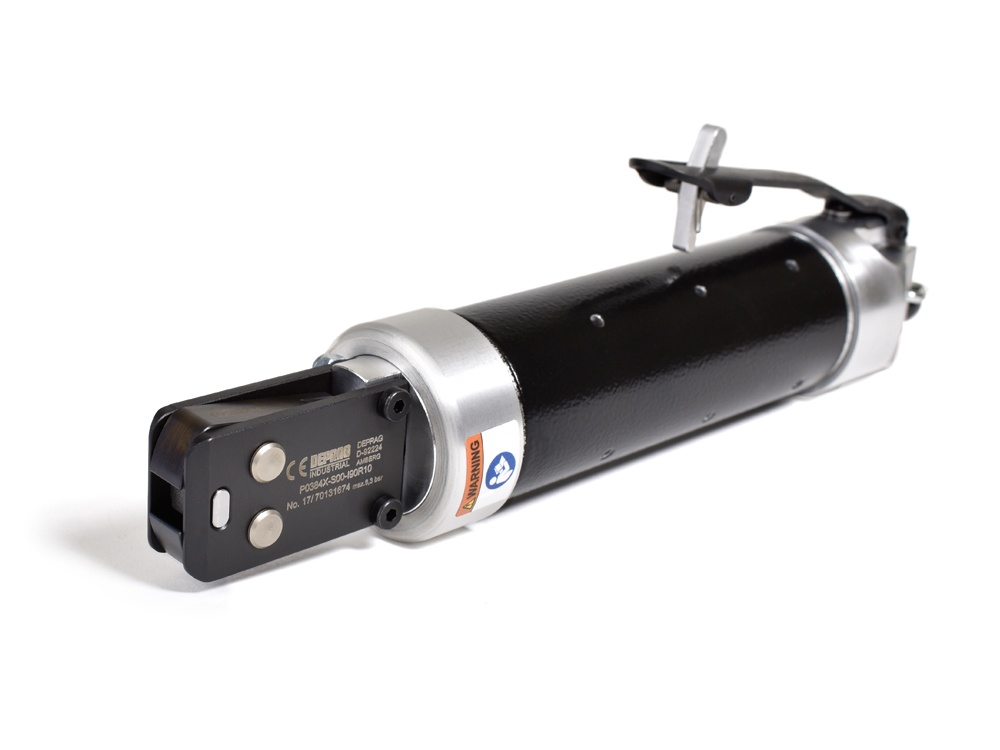

Our air plier for mounting of hose clamps - for the industrial use for example in mass-production, in the automotive industry, in machine building industry, in the appliance industry as well as in maintenance and assembly departments
Your advantages: High power, simple operation, highly durable
Objednací číslo
8298331C
| Squeeze force | 4100 N |
|---|---|
| Weight (with plier insert) | 0,75 kg / 1.65 lbs |
| Diameter | 47 mm / 1.85 in |
| Assortment | Additional Assortment |
| Start | safety lever |
| Air consumption / Cutting | 0,52 l |
| I.D. of air inlet hose | 6 mm / .24 in |
| Hose-clamps to Ø | 50 mm / 1.97 in |
| Width of clip | 10 mm / .39 in |
| Insert opening adjustable | yes |
| Base position | open |
| Pliers insert, mounted | yes |
| Max. opening width | 13 mm / .51 in |
| Min. closing width | 0,8 mm / .03 in |

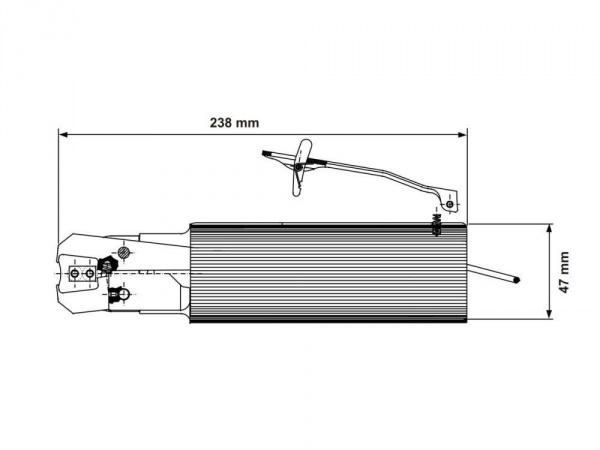

| Length (with plier insert) | 238 mm / 9.37 in |
| Air connection | thread 1/4" female |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
804250 |
|---|---|---|
| Nipple |
|
804270 |

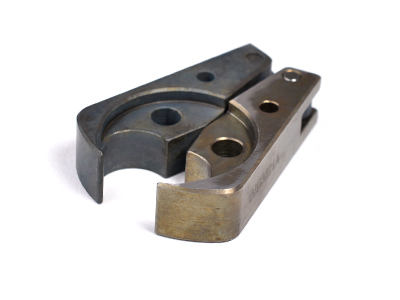

| Pliers insert I38S90R10 |
|
6950021A |
Optional Accessories
| Handle |
|
6023574 |
|---|
