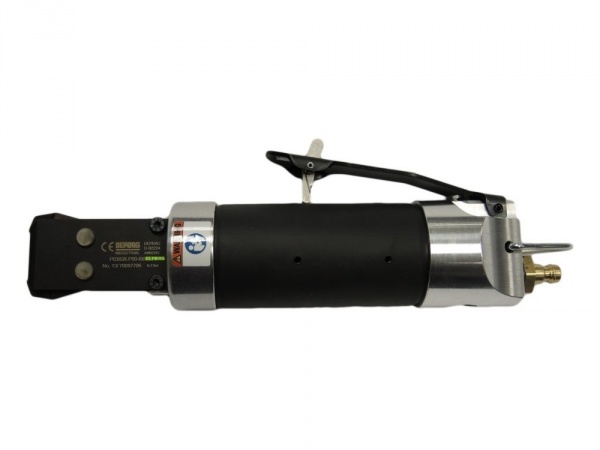

P0383X-P00-I90CL06
Our air pliers for mounting of CLIC Clamps - for the industrial use for example in mass-production, in the automotive industry, in machine building industry, in the appliance industry as well as in maintenance and assembly departments
Your advantages: High power, simple operation, highly durable
Objednací číslo
8215721A
| Squeeze force | 2900 N |
|---|---|
| Weight (with plier insert) | 0,75 kg / 1.65 lbs |
| Diameter | 47 mm / 1.85 in |
| Assortment | Additional Assortment |
| Start | safety lever |
| Air consumption / Cutting | 0,32 l |
| I.D. of air inlet hose | 6 mm / .24 in |
| Width of clip | 6 mm / .24 in |
| Insert opening adjustable | yes |
| Base position | open |
| Pliers insert, mounted | yes |
| Max. opening width | 20 mm / .79 in |
| Min. closing width | 2,5 mm / .10 in |

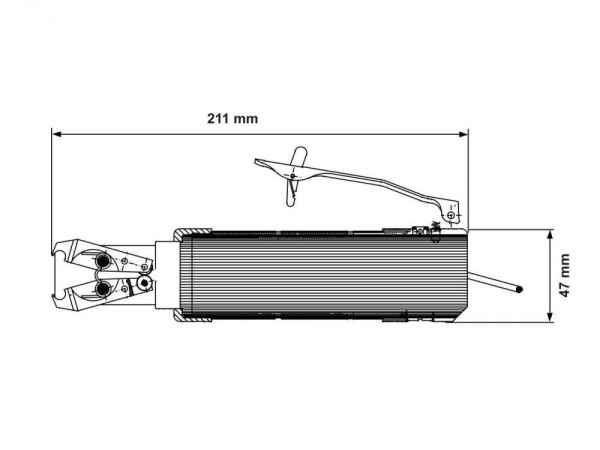

| Length (with plier insert) | 211 mm / 8.31 in |
| Air connection | thread 1/4" female |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
804250 |
|---|---|---|
| Nipple |
|
804270 |

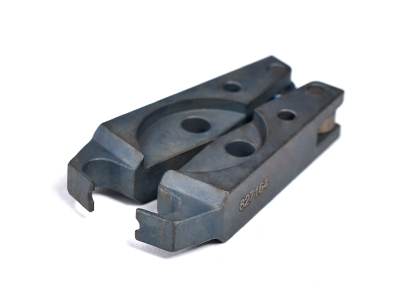

| Pliers insert I38P90CL06 |
|
827164 |
Optional Accessories
| Handle |
|
6023574 |
|---|
