HP100-H22B

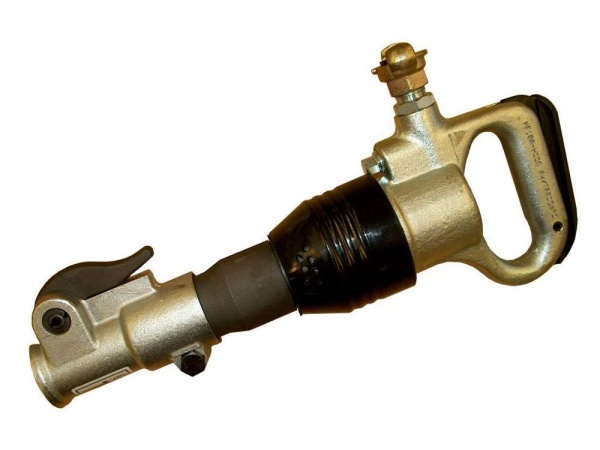

Our air pick hammer is used with drill-, or flat chisels to demolish stonework and concrete, for the use in road-construction and tunneling, as well as in mining.
Due to the weight of this hammer, it is possible to work in a vertical plane - in quarries and in the building industry. Your advantages: Highlys durable, simple operation, robust.
Objednací číslo
6060013A
| Weight | 9 kg / 19.84 lbs |
|---|---|
| Impact per minute | 1590 min-1 |
| Insertion tip | Hex. 22x82 mm |
| Air consumption (no load) | 0,9 m3/min / 31.80 cfm |
| Assortment | Additional Assortment |
| I.D. of air inlet hose | 16 mm / .63 in |
| Air connection | G 3/4'' male |
| Impact per minute - Hz | 27 Hz |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
6072326 |
|---|
Optional Accessories
| Chisel pointed, HR 22x82 mm, length 350 mm |
|
806400 |
|---|---|---|
| Chisel pointed, HR 22x82 mm, length 450 mm |
|
6074509 |
| Chisel pointed, HR 22x82 mm, length 600 mm |
|
806402 |
| Flat chisel, HR 22x82 mm, length 400 mm, 75 mm |
|
806410 |
| Flat chisel, HR 22x82 mm, length 400 mm, width 120 mm |
|
806411 |
| Flat chisel, HR 22x82 mm, length 480 mm, width 125 mm |
|
6074511 |
| Flat chisel, HR 22x82 mm, length 450 mm, width 25 mm |
|
806406 |
| Flat chisel, HR 22x82 mm, length 450 mm, width 75 mm |
|
6074507 |
| Flat chisel, HR 22x82 mm, length 550 mm, width 25 mm |
|
6074510 |
| Flat chisel, HR 22x82 mm, length 600 mm, width 25 mm |
|
806407 |
