GDST025-700BY

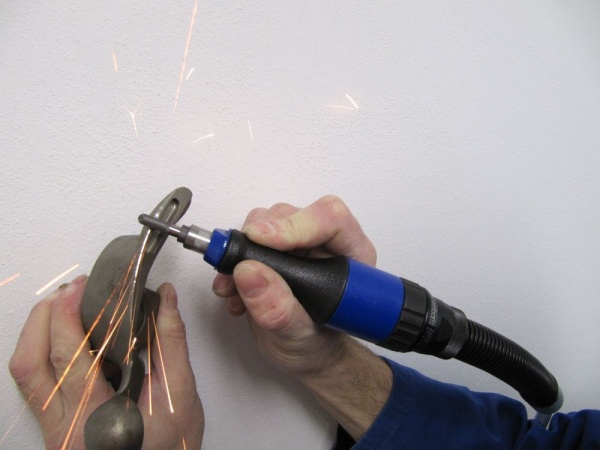

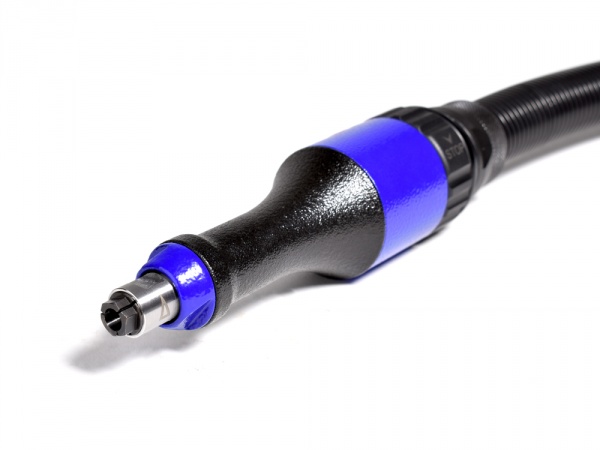

Our die grinder with turbine drive - for your optimum fabrication results. The turbine operates oilfree. The low weight assures a fatique-free operation. The inserted grinding tip or carbide cutter can be used with this pneumatic tool by using its full power and speed. The grinder is expecially suted for the precision grinding and milling in the tool-, die-, and mold making- or in small industrial areas. An integrated, automatic brake eliminates any trailing of the grinding spindle. Integrated speed regulator. Lower levels of vibration- and noise emissions compared to standard air-grinders.
Your advantage: Extreme low air consumption.
Well balanced 3 mm / 6 mm collets (Standard Equipment).
Objednací číslo
6060839A
| Max. power output | 250 W / .34 hp |
|---|---|
| Speed (no load) | 70000 min-1 |
| Weight | 0,3 kg / .66 lbs |
| Drive | turbine drive |
| Assortment | Standard assortment |
| Start | twist valve |
| Design | Basic Design, with brake |
| Rotation | right |
| Air consumption (no load) | 0,17 m3/min / 6.00 cfm |
| Air consumption (loaded) | 0,43 m3/min / 15.18 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Weight (air connection) | 0,32 kg / .71 lbs |
| Max. Ø of grinding tip | 13 mm / .51 in |
| Max. Ø of grinding insert | 6 mm / .24 in |
| Length of supply/exhaust hose | 2/1,25 m / 6.6/4.1 ft |
| Collets - clamping range | 3, 6 [4; 5; 1/8''; 3/16''; 1/4''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 3 mm |
|
830650 |
|---|---|---|
| Collet ø 6 mm |
|
830648 |
| Spanner 11 mm |
|
805491 |
| Spanner 6/ 9 mm |
|
830649 |
| Nipple |
|
829220 |
Optional Accessories
| Collet ø 4 mm |
|
830702 |
|---|---|---|
| Collet ø 5 mm |
|
830703 |
| Collet ø 1/4'' |
|
830653 |
| Collet ø 3/16'' |
|
830652 |
