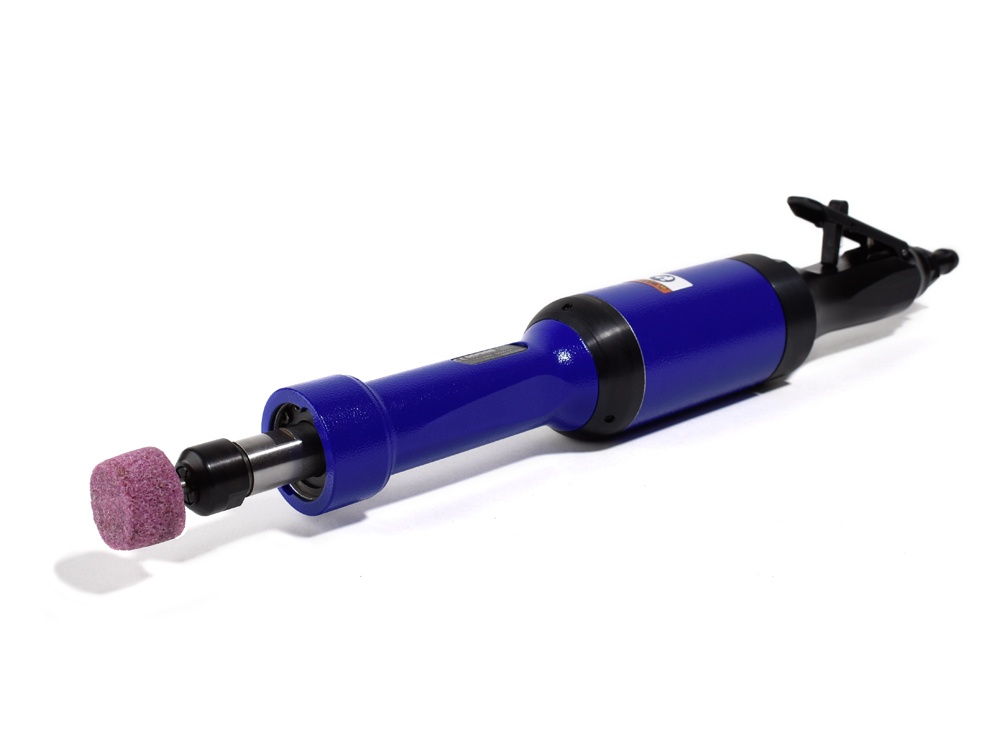

GDS120-120BX

The robust construction of this air grinder assures a high lifespan even when used in 24/7 operation. An operator is able to work fatique-free with this powerful air tool.

The die grinder is preferably used with grinding tips or carbide cutters for the treatment of plastics and metals in foundries, in the mold-making- and fixture-building industries and wherever precision fabrication is needed for de-burring, for the polishing of welding seems and for the processing of casted parts.

The air grinder incorporates a fast-acting speed regulator, which keeps the tools´speed constant even when operated at full load.The speed-regulator allows the adjustment of the peripheral speed; this allows the maximum speed potential to be used for any given application.

This air grinder operates at an extreme low noise level and keeps its operating vibration to a minimum.

The previous, overhauled model no. PBK 75X was renamed the GDS 120 and is one of the best-selling DEPRAG INDUSTRIAL grinders.

Noise Level / Vibration

Objednací číslo

6061163A

Max. power output	1200 W / 1.61 hp
Speed (no load)	12000 min^-1
Weight	2,25 kg / 4.96 lbs
Drive	vane motor
Assortment	Standard assortment
Start	safety lever
Design	Basic Design
Rotation	right
Air consumption (no load)	0,65 m³/min / 22.95 cfm
Air consumption (loaded)	1,2 m³/min / 42.37 cfm
I.D. of air inlet hose	13 mm / .51 in
Max. Ø of grinding tip	50 mm / 1.97 in
Max. Ø of grinding insert	20 mm / .79 in
Collets - clamping range	6 [3, 4, 5, 8, 9, 3/16'', 1/4'', 5/16''] mm
Air connection	thread 3/8" female
Operating pressure	6,3 bar / 90 psi

Compare

Standard Equipment

Collet ø 6 mm		315018
Spanner 17 mm		800405
Spanner 22 mm		800416
Allen key 2 mm		6072586
Hose Nozzle		6013772

Optional Accessories

Collet ø 3 mm		6014317
Collet ø 4 mm		6017743
Collet ø 5 mm		6017744
Collet ø 8 mm		315073
Collet ø 9 mm		315089
Collet ø 1/4''		315074
Collet ø 3/16''		315088
Collet ø 5/16''		315090
