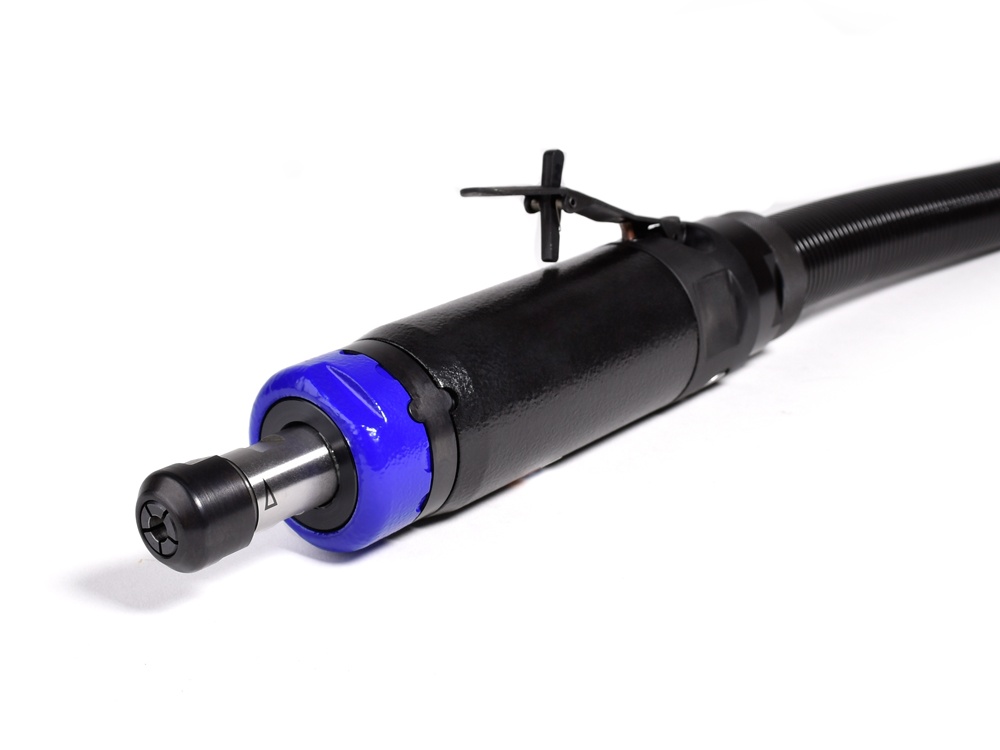

GDS100-190SXI

Our powerful die grinder is designed to fulfill the highest quality demands when the grinder is used with grinding tips or inserts on industrial applications - in foundries, in the tool- and die making industry or in the precision fabrication industry. The grinder is well-suited for the deburring and polishing of welnding seems and for the processing of casted parts. Col

Your advantages: For industrial applications, high power-output at a low weight, highly durable, efficient, ergonomic, simple operation.

Well balanced 6 mm collet (Standard Equipment)

Noise Level / Vibration

Objednací číslo

6060571A

Max. power output	1000 W / 1.34 hp
Speed (no load)	19000 min^-1
Weight	1,2 kg / 2,65 lbs
Drive	vane motor
Assortment	Additional Assortment
Start	safety lever
Design	Short design
Rotation	right
Air consumption (no load)	0,7 m³/min / 24.72 cfm
I.D. of air inlet hose	12 mm / .47 in
Weight (air connection)	0,5 kg / 1.10 lbs
Max. Ø of grinding tip	50 mm / 1.97 in
Max. Ø of grinding insert	16 mm / .63 in
Length of supply/exhaust hose	2/1 m / 6.6/3.3 ft
Collets - clamping range	6 [8; 9; 3/16''; 5/16''; 1/4''] mm
Air connection	Nipple
Operating pressure	6,3 bar / 90 psi
