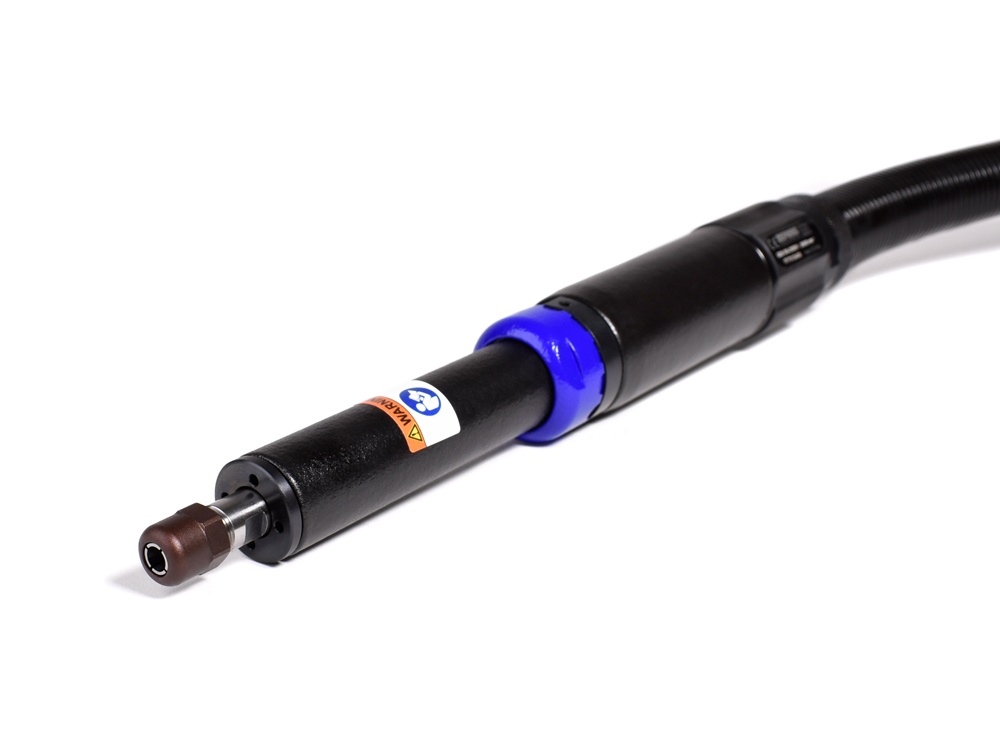

GDS050-120BYI

Our pneumatic grinder fulfill all requirements for an optimum fabrication - optimum material removal using a carbide cutter (grinding insert) or grinding tip, for consistent and quality performance.

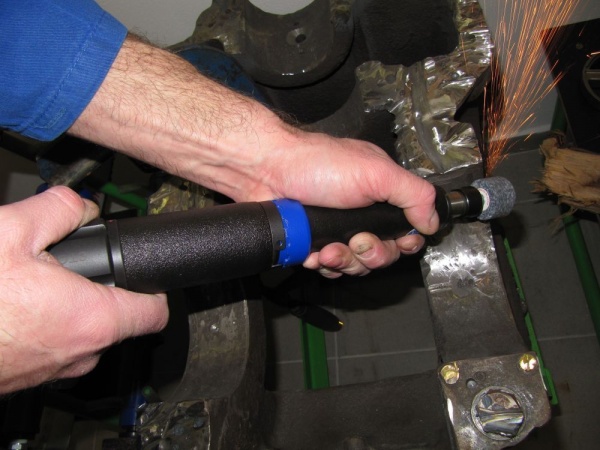

This midget grinder is used mainly for the treatment of plastic and metals in foundries, in the entire mechanical engineering industry, the tool- and die industry, the appliance-industry to level, de-burr or treat cast-iron parts.

Speed governor for optimal performance. Cold-isolated housing.

Your advantages: For industrial applications, high power-output at a low weight, highly durable, efficient, ergonomic, simple operation

Well balanced 6 mm collet (Standard Equipment), with supply/exhaust hose.

Noise Level / Vibration

PDF Product Catalog

Objednací číslo

6061015A

Max. power output	500 W / .67 hp
Speed (no load)	12000 min^-1
Weight	0,9 kg / 1.98 lbs
Drive	vane motor
Assortment	Additional Assortment
Start	twist valve
Design	Basic Design
Rotation	right
Air consumption (no load)	0,15 m³/min / 5.30 cfm
Air consumption (loaded)	0,65 m³/min / 22.95 cfm
I.D. of air inlet hose	10 mm / .39 in
Weight (air connection)	0,45 kg / .99 lbs
Max. Ø of grinding tip	32 mm / 1.26 in
Max. Ø of grinding insert	16 mm / .63 in
Length of supply/exhaust hose	2/1 m / 6.6/3.3 ft
Collets - clamping range	6 [3; 4; 5; 1/8''; 3/16'';1/4''] mm
Air connection	Nipple
Operating pressure	6,3 bar / 90 psi
