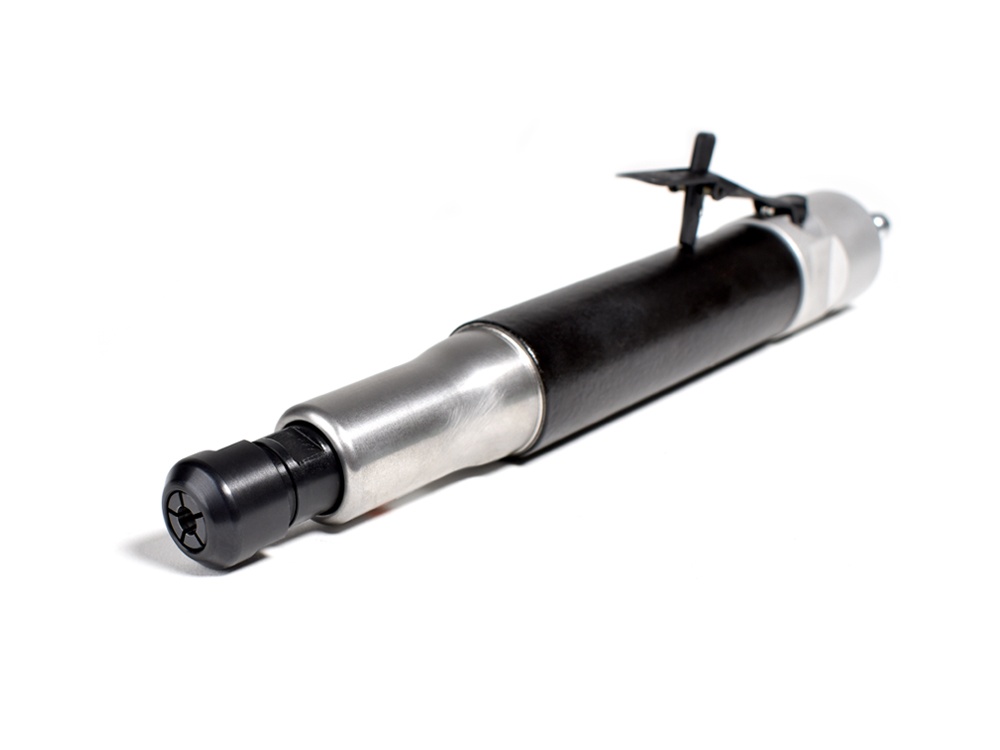

GDS035-045BX
Our small die grinder in inline design for the grinding with grinding tips or for the milling with grinding inserts (carbide cutters)
The ergonomic design of our powerful grinder allows the low-fatique operation in industrial areas. these tools are equipped with gears that allow the perfect operanal speed for excellent grinding results. Especially when used with carbide cutters or with wire brushes, this tool performs exceptionally well.
Objednací číslo
3150571A
| Max. Ø of grinding tip | 20 mm / .79 in |
|---|---|
| Max. Ø of grinding insert | 10 mm / .39 in |
| Max. power output | 350 W / .47 hp |
| Speed (no load) | 4500 min-1 |
| Weight | 1,2 kg / 2,65 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Basic Design |
| Rotation | right |
| Air consumption (no load) | 0,47 m3/min / 16.60 cfm |
| I.D. of air inlet hose | 10 mm / .39 in |
| Collets - clamping range | 6 [3;6;8;9; 5/16''; 3/16'';1/4''] mm |
| Air connection | thread 1/4" male |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
315018 |
|---|---|---|
| Spanner 17 mm |
|
800405 |
| Spanner 22 mm |
|
800416 |
| Nipple |
|
323214 |

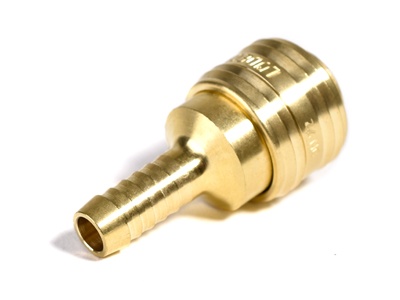

| Quick release coupling |
|
804252 |
Optional Accessories
| Collet ø 8 mm |
|
315073 |
|---|---|---|
| Collet ø 9 mm |
|
315089 |
| Collet ø 1/4'' |
|
315074 |
| Collet ø 3/16'' |
|
315088 |
| Collet ø 5/16'' |
|
315090 |

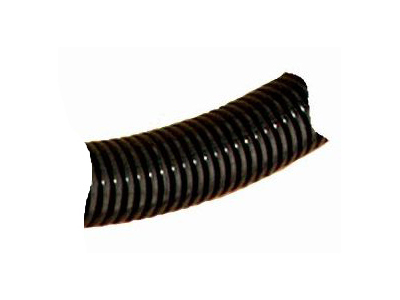

| Pressure hose (2m), exhaust hose (0,75 m) |
|
313179B |

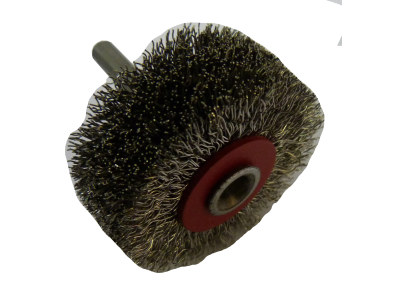

| Wire brush (rippled), ø 50 mm |
|
804675 |
