GDS030-300QX

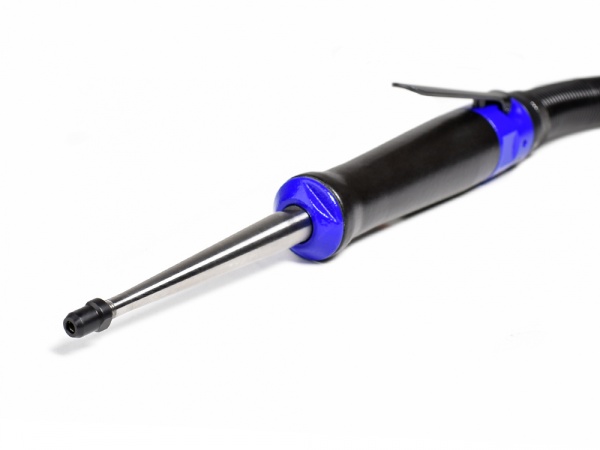

Air-operated grinder with collet is suited for the manual radial- and lateral grinding with grinding-wheels. The grinder can also be used with carbide grinding inserts.

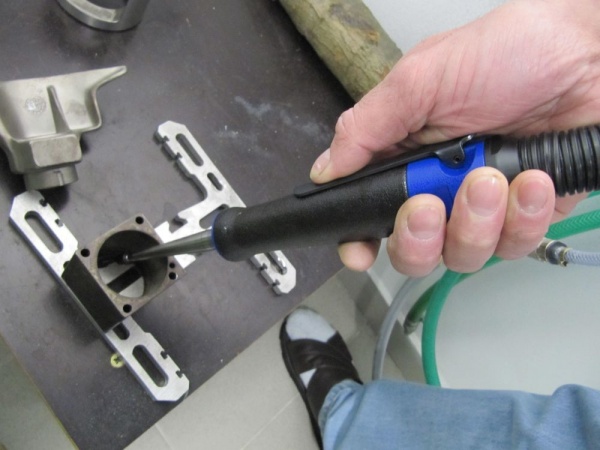

This grinder is generally used for the treatment of forms, dies, and punches; and to finish different type of cast iron, welding-, or work surface. We can use these grinders for less exactiva adjustment in heavily open place.
The grinder can also be used for the treatment of metals, alloys, plastics, and hard rubber.
Diameter of collet, which ist tightly integrated into the spindle, is 3 mm.
The best grinder is best used in hard to access areas, such as the automotive industry.
Your Advantages: For industrial applications, small and comfortable for good accessibility, highly durable, efficient, ergonomic, simple operation
Max. power output | 300 W / .40 hp |
---|---|
Speed (no load) | 30000 min-1 |
Weight | 0,4 kg / .88 lbs |
Drive | vane motor |
Assortment | Additional Assortment |
Start | safety lever |
Design | Extended, slender version |
Rotation | right |
Air consumption (no load) | 0,45 m3/min / 15.89 cfm |
I.D. of air inlet hose | 6 mm / .24 in |
Weight (air connection) | 0,32 kg / .71 lbs |
Max. Ø of grinding tip | 10 mm / .39 in |
Max. Ø of grinding insert | 6 mm / .24 in |
Air connection | Nipple |
Operating pressure | 6,3 bar / 90 psi |
