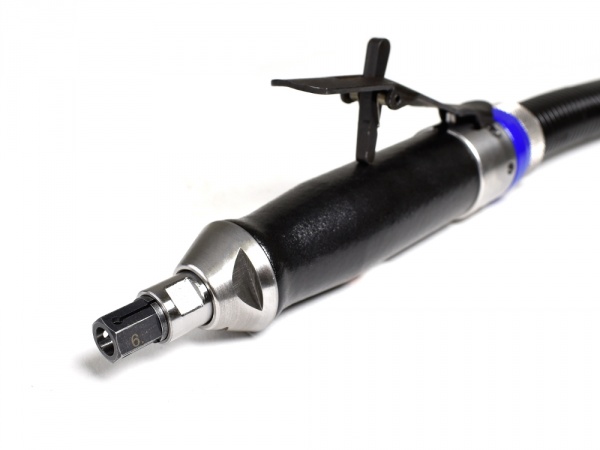

GDS027-320SX
Our small grinder in inline design for the grinding with grinding tips or for the milling with grinding inserts (carbide cutters).

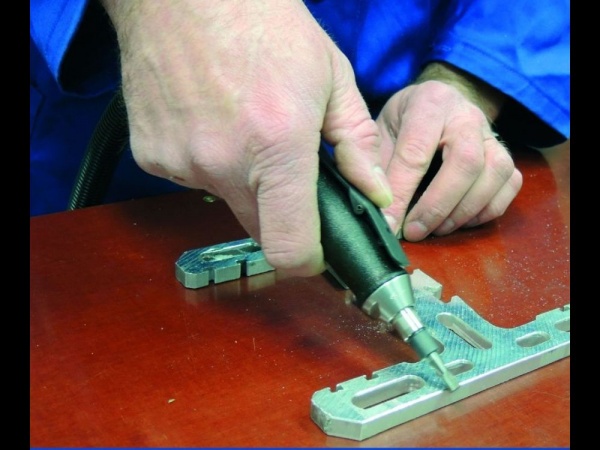

Grinding, milling, fabricating of casted parts or when used for precision operations when polishing and deburring of welding seams, the use of this small and light-weight grinder simplify any fabricating job.
Well balanced 6 mm collet (Standard Equipment), with supply/exhaust hose.
Objednací číslo
3148457B
| Max. power output | 270 W / .36 hp |
|---|---|
| Speed (no load) | 32000 min-1 |
| Weight | 0,34 kg / .75 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Short design |
| Rotation | right |
| Air consumption (loaded) | 0,3 m3/min / 10.59 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Max. Ø of grinding tip | 25 mm / .98 in |
| Max. Ø of grinding insert | 10 mm / .39 in |
| Length of supply/exhaust hose | 2/0,75 m / 6.6/2.5 ft |
| Collets - clamping range | 6 [3; 4; 5; 6; 1/8''; 1/4''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
312688 |
|---|---|---|
| Spanner 9 mm |
|
800401 |
| Spanner 10 mm |
|
800402 |
| Nipple |
|
6015339 |
Optional Accessories
| Collet ø 3 mm |
|
312681 |
|---|---|---|
| Collet ø 4 mm |
|
312684 |
| Collet ø 5 mm |
|
312686 |
| Collet ø 6 mm |
|
312688 |
| Collet ø 3,175 mm |
|
312682 |
| Collet ø 6,35 mm |
|
312689 |
