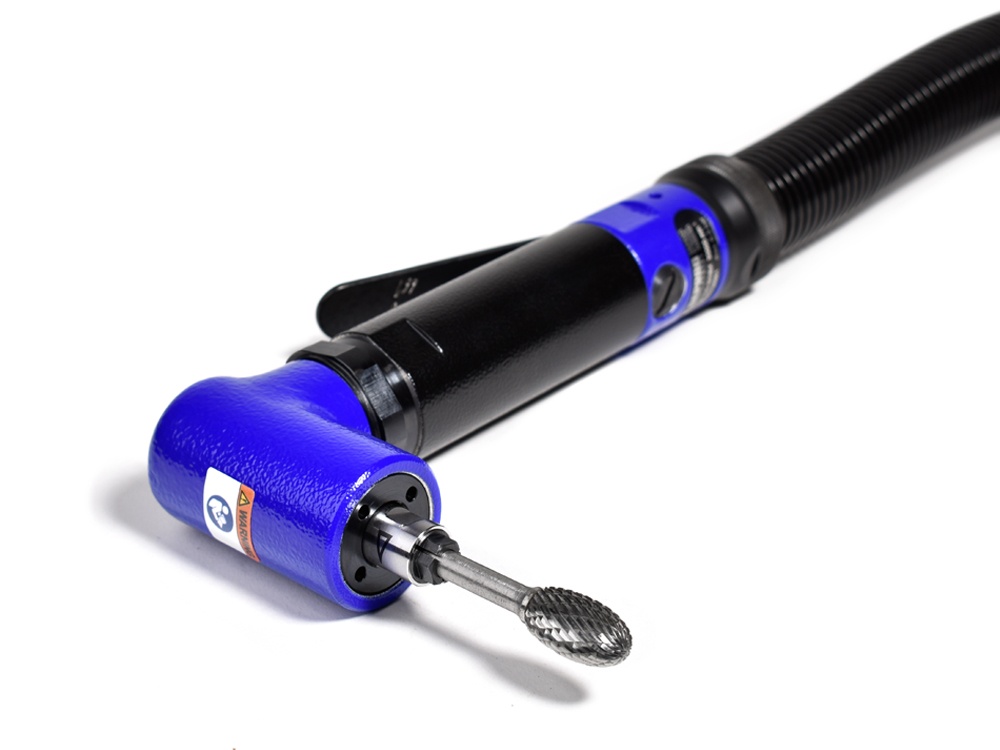

GDA030-450BX
Small, light weight and ergonomic grinder for fabricating of plastics or metal. Because of the angle-head, this tool series is best used for hard-to-reach areas in foundries, tool-, die- and mold making industries or where precision fabricating is required.
Well balanced 6 mm collet (Standard Equipment).
Objednací číslo
6060955A
| Max. power output | 300 W / .40 hp |
|---|---|
| Speed (no load) | 45000 min-1 |
| Weight | 0,48 kg / 1.06 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Basic Design |
| Rotation | right |
| Air consumption (no load) | 0,44 m3/min / 15.54 cfm |
| Air consumption (loaded) | 0,48 m3/min / 16.95 cfm |
| I.D. of air inlet hose | 8 mm / .31 in |
| Max. Ø of grinding tip | 16 mm / .63 in |
| Max. Ø of grinding insert | 6 mm / .24 in |
| Length of supply/exhaust hose | 2/1 m / 6.6/3.3 ft |
| Collets - clamping range | 6 [3; 4; 5; 1/8''; 3/16''; 1/4''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
830648 |
|---|---|---|
| Spanner 11 mm |
|
805491 |
| Spanner 6/ 9 mm |
|
830649 |
| Nipple |
|
6072226 |
Optional Accessories
| Collet ø 3 mm |
|
830650 |
|---|---|---|
| Collet ø 4 mm |
|
830702 |
| Collet ø 5 mm |
|
830703 |
| Collet ø 1/8'' |
|
830651 |
| Collet ø 1/4'' |
|
830653 |
| Collet ø 3/16'' |
|
830652 |
