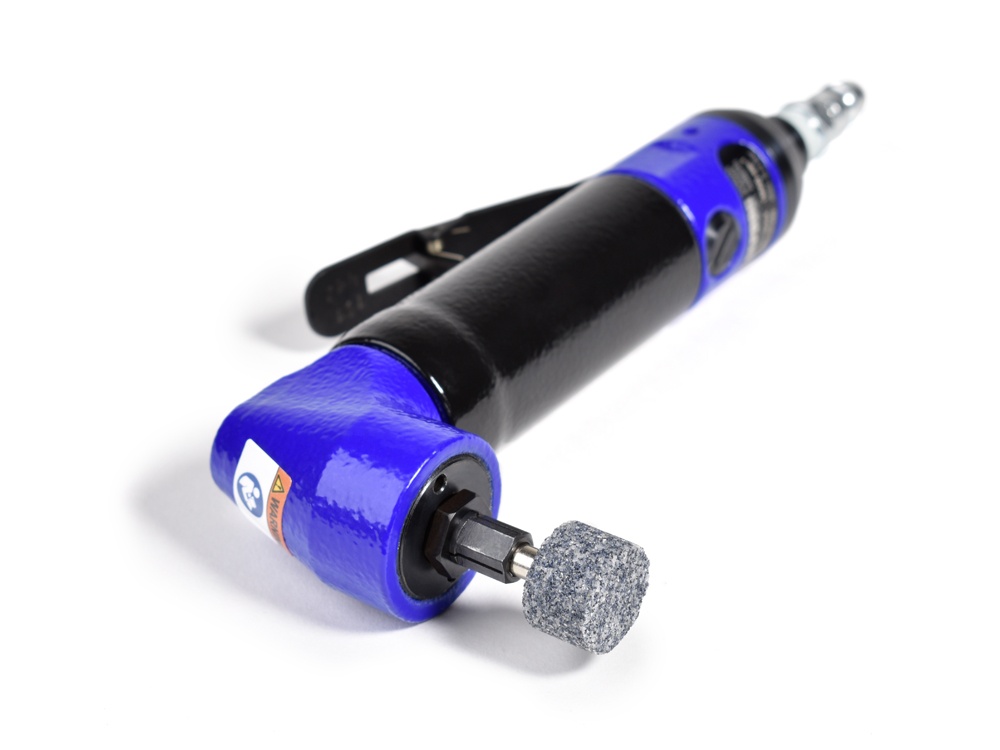

GDA030-180SX
Our new small angle grinder with collet is especially well-suited for metal- and plastic fabrications, when used with grinding tips or with high-tech grinding inserts. The grinder can be used in foundries, machine shops or in the automotive industry.
When equipped with rubber pads or fiber disks having different grains, the grinder can be used on flat and curved surfaces. The head of this grinder has a lower profile (63 mm) compared to the other GDA type angle-grinders (78,3 mm).
Due to the reduced head height and the head shape (90° angle-head), it is possible to use these grinders in hard-to-reach areas.
Well-balanced 6-mm collet is supplied as standard equipment; 3-mm; 4-mm; 5-mm; 6-mm; ⅛”; 3∕16“; ¼” (optional accessories).
Objednací číslo
6061260B
| Max. power output | 300 W / .40 hp |
|---|---|
| Speed (no load) | 18000 min-1 |
| Weight | 0,54 kg / 1.19 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Short design |
| Rotation | right |
| Air consumption (no load) | 0,36 m3/min / 12,71 cfm |
| Air consumption (loaded) | 0,46 m3/min / 16.24 cfm |
| I.D. of air inlet hose | 8 mm / .31 in |
| Max. Ø of grinding tip | 16 mm / .63 in |
| Max. Ø of grinding insert | 6 mm / .24 in |
| Collets - clamping range | 6 [3; 3,1; 4; 4,76; 5; 6,35] mm |
| Air connection | thread 1/4" female |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
312688 |
|---|---|---|
| Spanner 14 mm |
|
800410 |
| Spanner 9 mm |
|
800401 |
| Plug 25SF AK 13 SXN |
|
6072224 |
| Oil set, oil-25 ml |
|
6078678 |
Optional Accessories
| Collet ø 3 mm |
|
312681 |
|---|---|---|
| Collet ø 3,175 mm |
|
312682 |
| Collet ø 4 mm |
|
312684 |

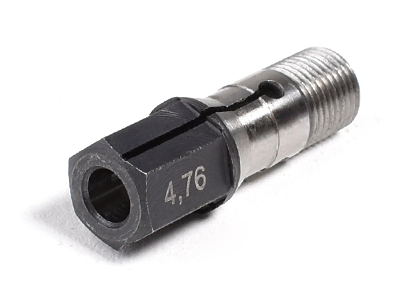

| Collet ø 4,76 mm |
|
313947 |
| Collet ø 5 mm |
|
312686 |
| Collet ø 6,35 mm |
|
312689 |

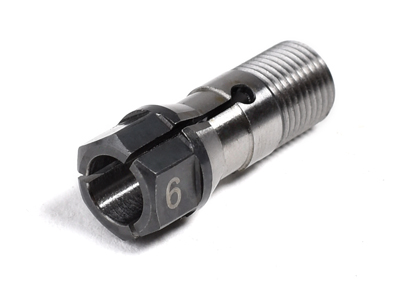

| Collet ø 6 mm (short design) |
|
3126881 |

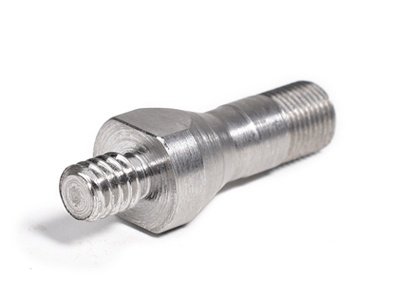

| Threaded adapter (1/4"20UNC) for polishing support disc |
|
3126884 |
