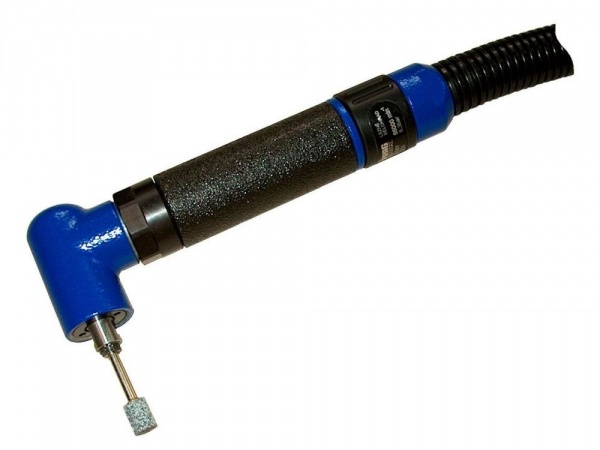

GDA013-550SY
Small, light weight and ergonomic grinder in angle-head design is especially well suited for the grinding and milling in hard-to reach areas. There are many applications areas, such as the tool-, die- and mold industry or when precision fabricating is necessary.
Well balanced 3 mm collet (Standard Equipment).
Objednací číslo
6060528A
| Max. power output | 130 W / .17 hp |
|---|---|
| Speed (no load) | 55000 min-1 |
| Weight | 0,2 kg / .44 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | twist valve |
| Design | Short design |
| Rotation | right |
| Air consumption (no load) | 0,25 m3/min / 8.83 cfm |
| I.D. of air inlet hose | 5 mm / .20 in |
| Weight (air connection) | 0,25 kg / .55 lbs |
| Max. Ø of grinding tip | 10 mm / .39 in |
| Max. Ø of grinding insert | 3 mm / .12 in |
| Length of supply/exhaust hose | 2/1,25 m / 6.6/4.1 ft |
| Collets - clamping range | 3 [2; 3,25; 1/8''; 3/32''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 3 mm |
|
6014304 |
|---|---|---|
| Spanner 8 mm |
|
800399 |
| Spanner 6/ 9 mm |
|
830649 |
| Nipple |
|
829220 |
Optional Accessories
| Collet ø 2,5 mm |
|
6014312 |
|---|---|---|
| Collet ø 3/32'' |
|
6014313 |
| Collet ø 1/8'' |
|
6014311 |
