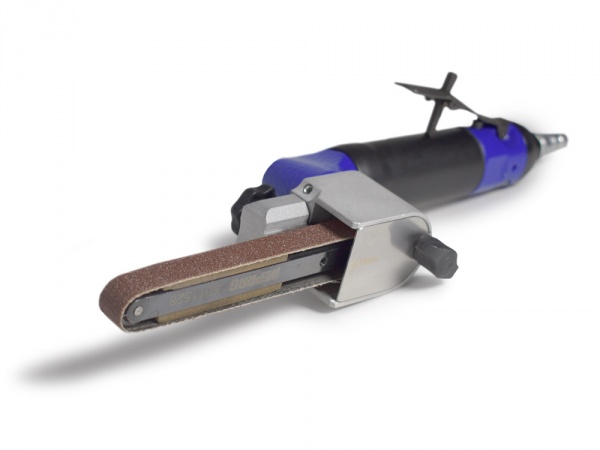

GBA030-013BX-200
Belt sander for the grinding and polishing of even and curved surfaces. Basic Design. Can even be operated as a grinders with collet.
Our DEPRAG INDUSTRIAL belt sander is designed for the grinding, smoothening and polishing of even a curved surfaces, for the bevelling of edges and the fabricating of steel, stainless-steel, brass, bronze-casting, aluminum parts, etc.
DEPRAG CZ a.s. offer contact arms for belt sanders in different designs, shapes, sizes and materials - made for your application. The application range of the belt grinders is almost unlimited, due to many different contact arms that we offer. The grinders can be used for standard vertical or horizontal grinding of edges and pipes. Different size of contact wheels and thin arms allow grinding of places with limited access or inside holes. Contact arms with belt support are used on flat surfaces and arms without support are more suitable for finishing of round surfaces.
| Max. power output | 300 W / .40 hp |
|---|---|
| Speed (no load) | 20000 min-1 |
| Weight | 0,9 kg / 1.98 lbs |
| Assortment | Standard assortment |
| Start | safety lever |
| Design | Basic Design |
| Air consumption (no load) | 0,36 m3/min / 12,71 cfm |
| Air consumption (loaded) | 0,46 m3/min / 16.24 cfm |
| Max. radial speed of support disk | 19 m/s / 62,34 ft/s |
| I.D. of air inlet hose | 8 mm / .31 in |
| Dimensions of grinding belt | 13x305 mm / .53x12 in |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
| Allen key 2,5 mm |
|
800445 |
|---|---|---|
| Grinding belt P60 13x305 mm (5 pcs) |
|
830686 |
| Grinding belt P80 13x305 mm (5 pcs) |
|
830687 |
| Grinding belt P120 13x305 mm (5 pcs) |
|
830688 |
| Contact arm (grinding belt- 13 x 305 mm ; contact wheel-steel, 9xø15 mm; plate 13 mm wide) |
|
6011528 |
| Contact arm (grinding belt- 3,5; 6,5; 13 x 305 mm; contact wheel-PolyTAN, 9xø25 mm) |
|
6017824 |
|---|---|---|
| Contact arm (grinding belt- 13 mm x 370 mm ; contact wheel-PolyTAN, 5xø15 mm) |
|
6017826 |
| Contact arm (grinding belt- 13 x 305 mm ; contact wheel-steel, 8xø8 mm; plate 13 mm wide) |
|
6017828 |
| Contact arm (grinding belt- 13 x 305 mm ; Kontaktarm-PolyTAN, 9xø15 mm; Platte 13 mm breit) |
|
6017823 |
| Contact arm (grinding belt- 3,5; 6,5; 13x330 mm ; contact wheel-PolyTAN, 9xø19 mm) |
|
6017825 |
| Contact arm (grinding belt- 13 mm x370 mm ; contact wheel-brass, 9xø11 mm) |
|
6017827 |
| Contact arm (grinding belt- 13 mm x330 mm ; contact wheel-brass, 9xø11 mm; plate 13 mm wide) |
|
6017829 |
| Grinding belt P60 13x305 mm (5 pcs) |
|
830686 |
| Grinding belt P80 13x305 mm (5 pcs) |
|
830687 |
| Grinding belt P120 13x305 mm (5 pcs) |
|
830688 |
| Screen 65 μm |
|
6078645 |
