GAT818-260BX

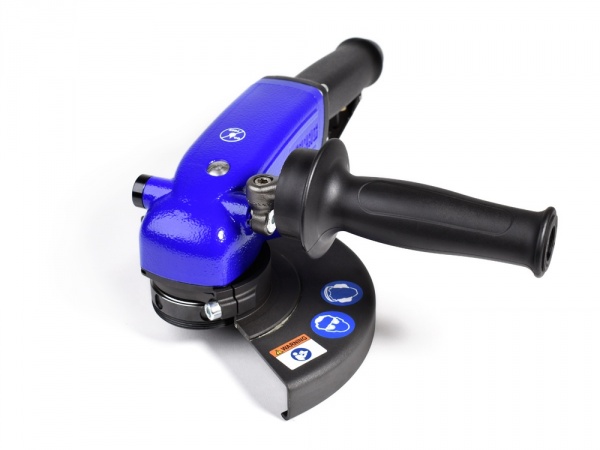

Air Turbine Grinder - DOUBLE THE POWER! HALF THE WEIGHT!
Our air angle grinder wit angle gear is designed for the scrubbing and leveling of cast-iron parts, steel parts, welding seams, non-ferrous metals of all types and rock, as well as for any other fabrication areas, such as the steel- and container construction, for machine building, in foundries and concrete construction.
- For grinding or when used with cut-off wheels of type 27, 41/42, for the best-possible grinding results even on hard-to-reach areas
- Oilfree and maintenance-free operation, turbine motor does not require airline lubrication
- Optimal power to weight ratio, low air consumption, high material removal
- Perfect handling due to the vibration-dampening grip and the ergonomic form
- High operating-safety
- Safety guard adjustment is possible without the need of a tool
- Spindle-lock at the push of a button; keyless wheel/disk replacement possible
- The integrated speed regulator holds the speed of the tool constant, even when tool is operated at full load.
Objednací číslo
310687A
| Max. power output | 2600 W / 3.49 hp |
|---|---|
| Speed (no load) | 8500 min-1 |
| Weight | 2,8 kg / 6.17 lbs |
| Drive | turbine drive |
| Assortment | Additional Assortment |
| Start | safety lever |
| Design | Basic Design |
| Rotation | right |
| Air consumption (no load) | 0,63 m3/min / 22,23 cfm |
| Air consumption (loaded) | 2,25 m3/min / 79.4 cfm |
| Max. radial speed | 80 m/s / 262.5 ft/s |
| I.D. of air inlet hose | 13 mm / .51 in |
| I.D. of grinding wheel | 22,23 mm / .87 in |
| O.D. of grinding wheel | 180 mm / 7.09 in |
| Max. thickness of grinding wheel | 10 mm / .39 in |
| Max. thickness of cutting-off wheel | 3,2 mm / .13 in |
| Max. cutting depth | 38,5 mm / 1.52 in |
| Air connection | thread 1/2" female |
| Spindle thread | - |
| Operating pressure | 6,3 bar / 90 psi |
Optional Accessories
| M14 adapter |
|
60226851 |
|---|---|---|
| Oil set for oil change in head |
|
790083A |
| Hose set (LW 13 mm, 4-meter hose) |
|
315130A |
| Filter LW12, porosity of 20 μm |
|
6021281A |
| Swivel connector, G1/2"-12 mm, turnable |
|
6078628 |
| Nozzle, G3/8", turnable (around the axis) |
|
6022433A |
