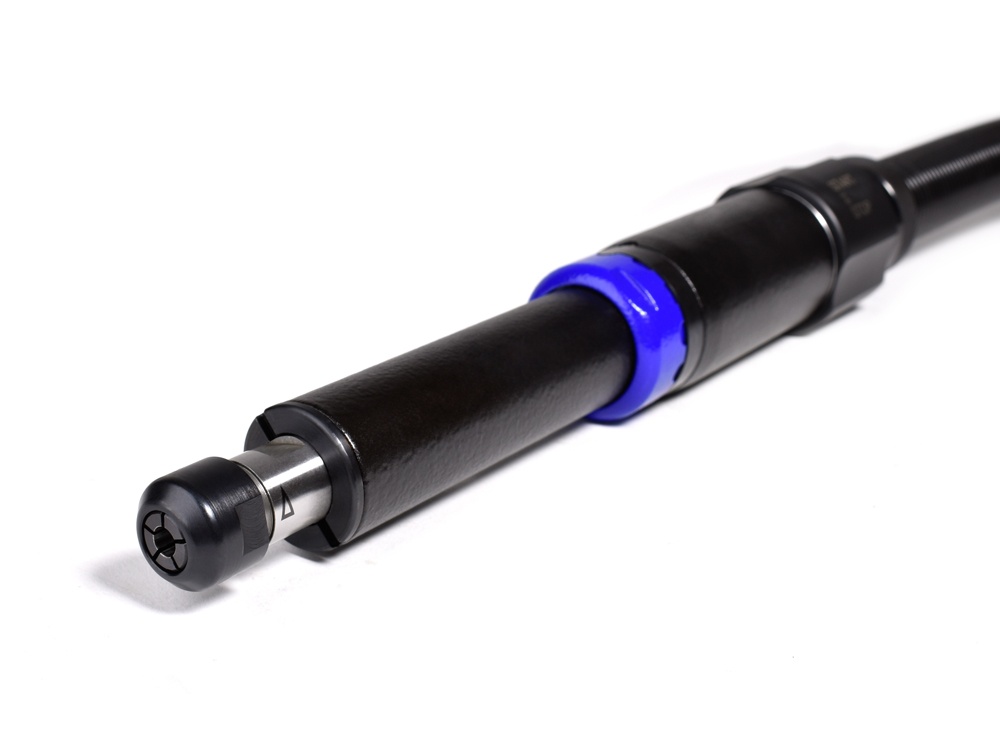

G070-120BYI
Our pneumatic grinder with collet fulfill all requirements for an optimum fabrication (for the grinding tips and for the milling with grinding inserts) - for all industrial areas - foundries, automotive industry etc.)
This grinder is equipped with a integrated speed regulator, that holds the speed of the tool constant, even when tool is operated at full load.
Cold-insolated housing.
Your advantages: For industrial applications, high power-output at a low weight, highly durable, efficient, ergonomic, simple operation.
Well balanced 6 mm collet (Standard Equipment). With supply/exhaust hose.
Objednací číslo
6060905A
| Max. power output | 700 W / .94 hp |
|---|---|
| Speed (no load) | 12000 min-1 |
| Weight | 1,7 kg / 3.75 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | twist valve |
| Design | Basic Design |
| Rotation | right |
| Air consumption (no load) | 0,4 m3/min / 14.12 cfm |
| Air consumption (loaded) | 0,95 m3/min / 33.55 cfm |
| I.D. of air inlet hose | 12 mm / .47 in |
| Weight (air connection) | 0,4 kg / .88 lbs |
| Max. Ø of grinding tip | 50 mm / 1.97 in |
| Max. Ø of grinding insert | 16 mm / .63 in |
| Length of supply/exhaust hose | 2/1 m / 6.6/3.3 ft |
| Collets - clamping range | 6 [8; 9; 3/16''; 5/16''; 1/4''] mm |
| Air connection | Nipple |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Collet ø 6 mm |
|
315018 |
|---|---|---|
| Spanner 17 mm |
|
800405 |
| Spanner 22 mm |
|
800416 |
| Nipple |
|
829461 |
Optional Accessories
| Collet ø 8 mm |
|
315073 |
|---|---|---|
| Collet ø 9 mm |
|
315089 |
| Collet ø 1/4'' |
|
315074 |
| Collet ø 3/16'' |
|
315088 |
| Collet ø 5/16'' |
|
315090 |
