DS029-045SXPB10

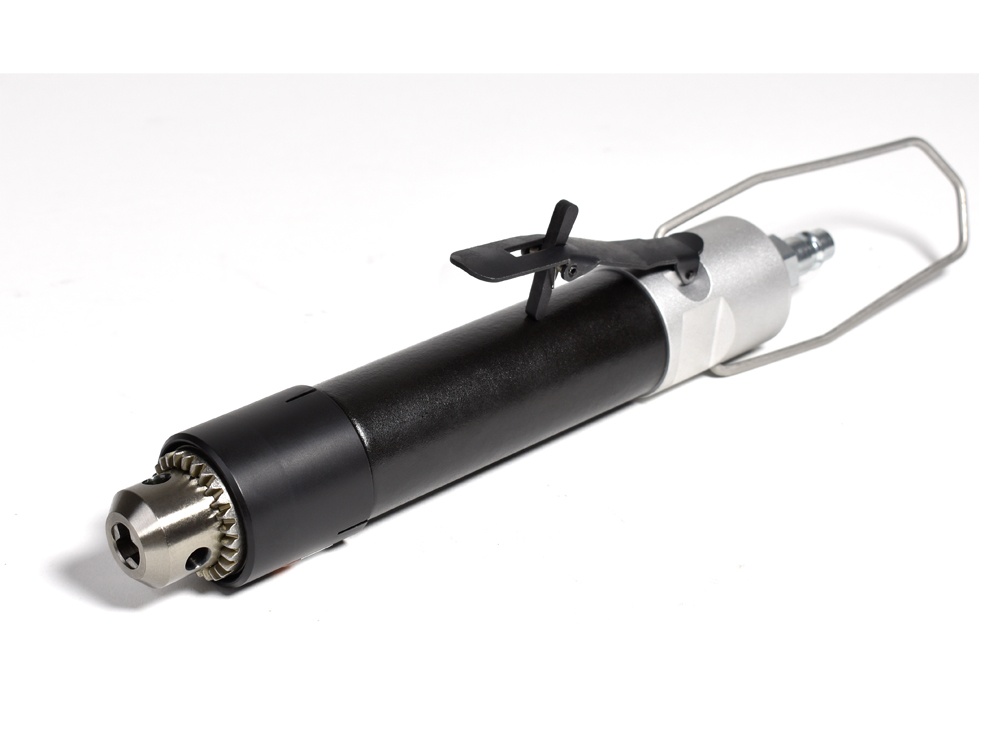

Our midget drill with drill chuck primarily for vertical applications in the aviation- and automotive industry as wel as the machine building industry
With gearing to achieve the optimal operating speed and to achieve the best-possible drilling result. Tapered chuck DIN 238 - B10.
Objednací číslo
3922131A
| Max. power output | 290 W / .39 hp |
|---|---|
| Speed (no load) | 4500 min-1 |
| Weight | 1 kg / 2.20 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | safety lever |
| Rotation | right |
| Air consumption (no load) | 0,62 m3/min / 21.89 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Chuck range | 0,5-6,5 mm |
| Quick change chuck - Range | 0,5-6,5 |
| Taper DIN 238 | B10 |
| Drilling into steel to | 4 mm / .16 in |
| Drilling into alu to | 6 mm / .24 in |
| Air connection | thread 1/4" male |
| Operating pressure | 6,3 bar / 90 psi |
