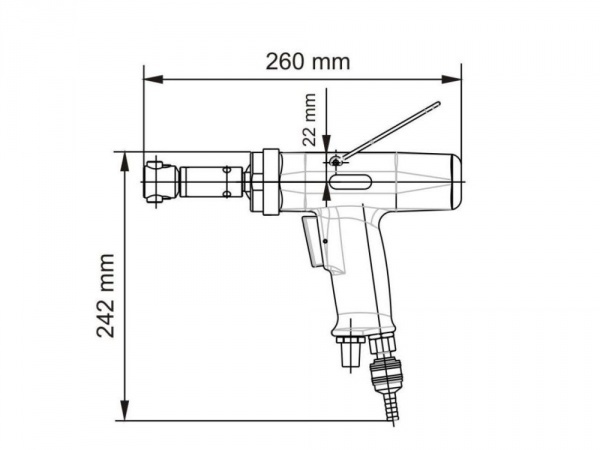

DP030-007ZRB12

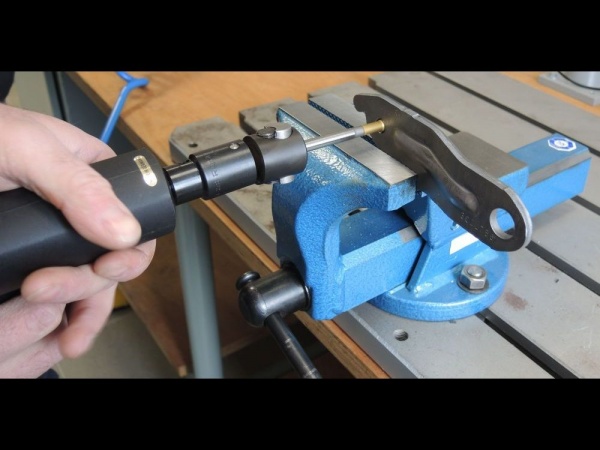

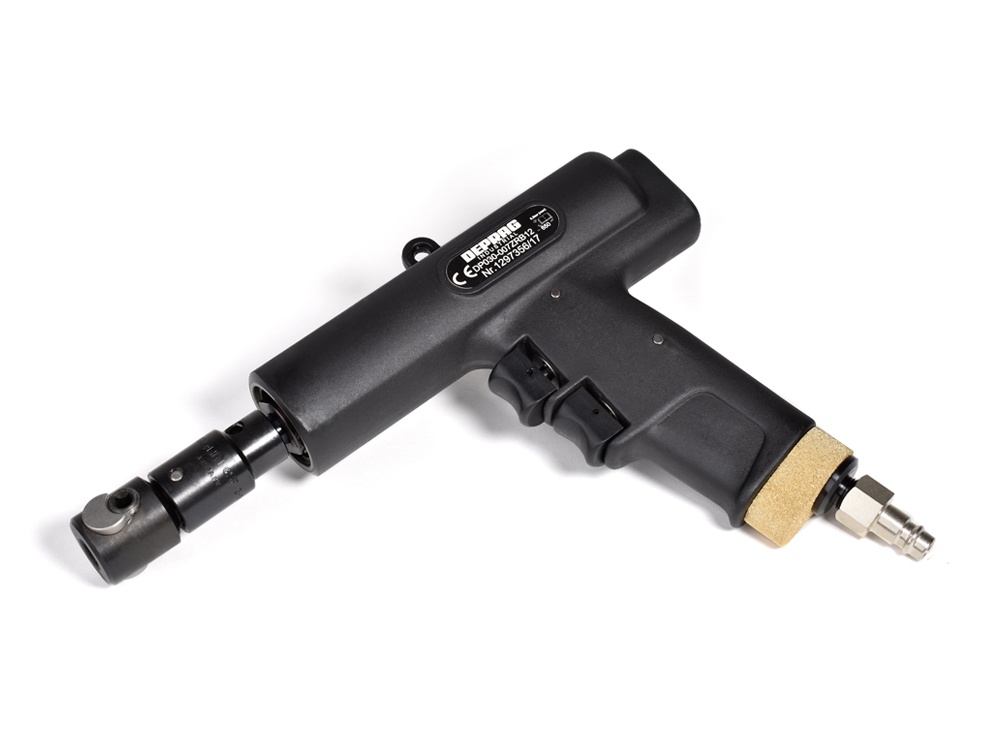

Tapper - pistolgrip - for the tapping of threads, as well as the cleaning of threads in material such as steel, aluminium and other alloys for applications in the automotive- and machine building industries.
The tapper is equipped with a flexible chuck that perfectly guides the tap-insert and cuts a straight thread, even if the tapper is held at a slight angle.
- Start and reverse by trigger
- For right / left thread cutting, suitable for cutting of blind hole (optional accessories)
- For different tapping applications
Objednací číslo
3023731A
| Max. power output | 300 W / .40 hp |
|---|---|
| Speed (no load) | 650/550 (right/left) min-1 |
| Weight | 1,5 kg / 3.31 lbs |
| Drive | vane motor |
| Assortment | Additional Assortment |
| Start | trigger |
| Design | Pistolgrip Design |
| Rotation | right/left |
| Air consumption (no load) | 0,4 m3/min / 14.12 cfm |
| I.D. of air inlet hose | 6 mm / .24 in |
| Tapping into steel to | M8 mm |
| Tapping into alu to | M10 mm |
| Pendelfutter capacity | 3-9 mm |
| Taper DIN 238 capacity | B12 mm |
| Air connection | thread 1/4" male |
| Operating pressure | 6,3 bar / 90 psi |
Standard Equipment
| Quick release coupling |
|
804251 |
|---|---|---|
| Nipple |
|
323214 |
| Drill chuck - swinging |
|
805091A |
Optional Accessories
| Side handle |
|
333834A |
|---|---|---|
| Drill chuck (capacity 0,8-10 mm/B12) |
|
804650 |
| Quick-change bushing |
|
805094 |
| Quick-change insert (fro blind thread) with safety clutch for taps with a shaft-dimension of ø6 mm x 4,9 mm (M6) |
|
805103 |
| Quick-change insert (fro blind thread) with safety clutch for taps with a shaft-dimension of ø6 mm x 4,9 mm (M8) |
|
805154 |
| Quick-change insert (fro blind thread) with safety clutch for taps with a shaft-dimension of ø7 mm x 5,5 mm (M10) |
|
805155 |
