DPT450-011BXOEX

This new air drill is primarily used in manual core-drilling applications when equipped with a drill-rod. This drill is exceptionally robust when drilling soft- or semi-solid coal, shale or other soft rock formations.

Due to its design and layout, this drill corresponds to the highest safety requirements as stipulated for the use in explosion-hazardous environments (IM2c II2GcIIBT6(80°C)X).

This is a worldwide innovation where the first of our drills is equipped with a turbine drive.  The drill does not require airline lubrication (oilfree!). This tool outputs an enormous torque of 45 Nm (400 in.lbs.) at maximum power! The innovative regulator of this drill guarantees an extreme long lifespan. The total weight of the drill is only 8.7 kg (19 lbs.) and therefore the power-to-weight ratio is an advantage! The drill is intended for dry-drilling. The simple to use drill-chuck comes in a particular hex size or can be customized according to a customers’ requirement. The frontal exhaust air helps with keeping the drill location clear of debris. To increase the lifespan of the drill, we recommend equipping the drill with an external filter - for example filter part number 6022055A.

Additional advantages:

  • Suitable for use in potentially explosion-hazardous environments
  • Excellent power-to-weight ratio
  • Safe and simple operation
  • Highly durable
Objednací číslo
6061253A
Max. power output 4500 W / 6.00 hp
Speed (no load) 1100 min-1
Weight 8,7 kg / 19.17 lbs
Drive turbine drive
Assortment Additional Assortment
Start safety lever
Rotation right
Design Basic Design
Speed (loaded) 900 min-1
Air consumption (no load) 1,25 m3/min / 44.14 cfm
Air consumption (loaded) 4,3 m3/min / 151.83 cfm
I.D. of air inlet hose 19 mm / .75 in
Max. drill-Ø 42 mm / 1.65 in
Air connection thread 1/2" female
Operating pressure 6,3 bar / 90 psi
Standard Equipment

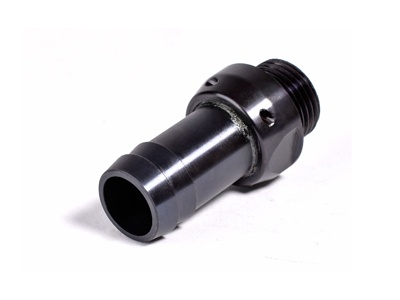

Hose Nozzle, turnable 6021323A
Optional Accessories

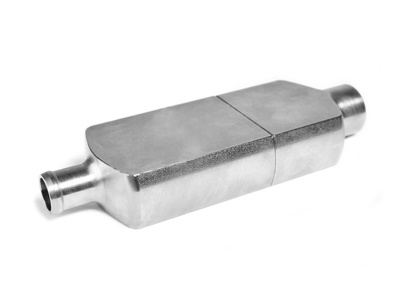

Filter - porosity of 20 μm 6022055A
